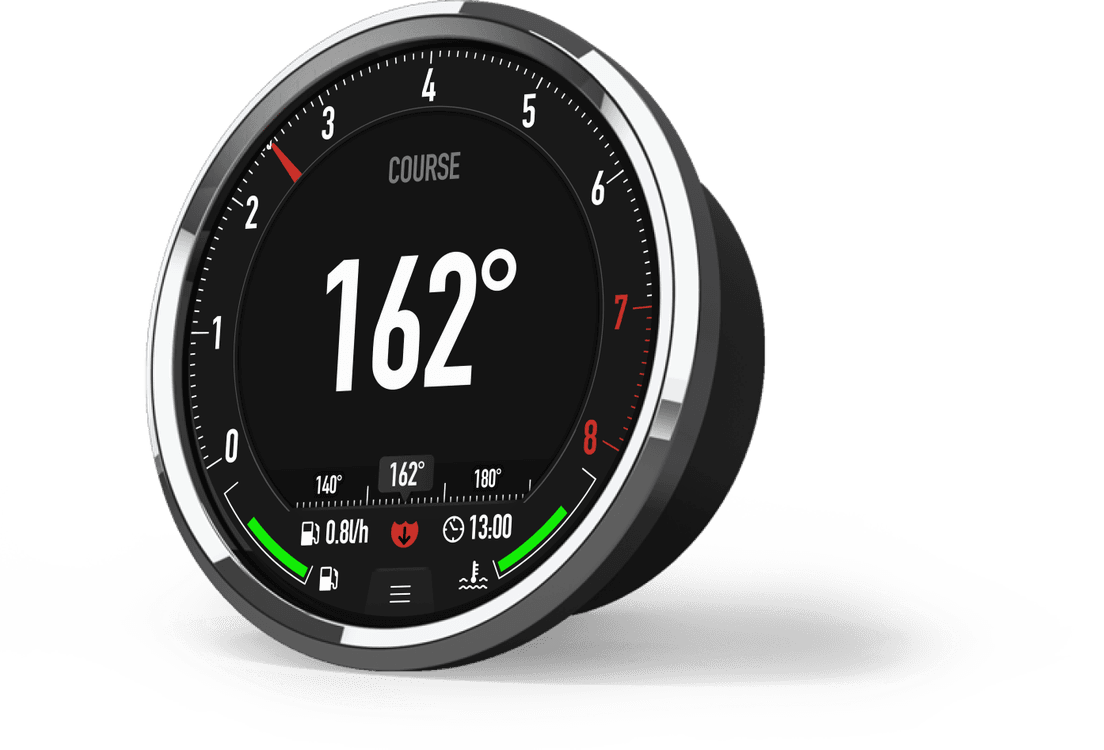

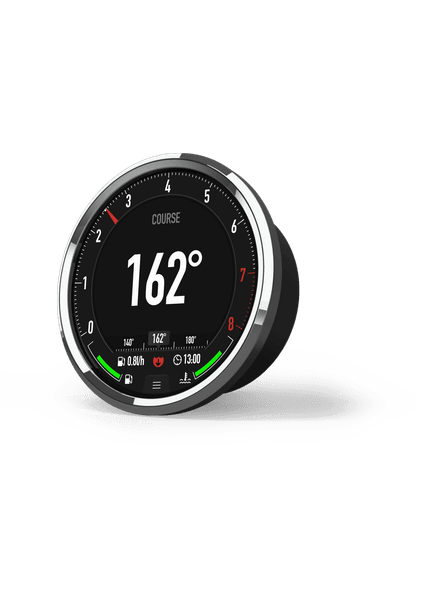

LXNAV E360 Premium Touchscreen Marine Gauge

Upgrade your boat’s cockpit with the LXNAV E360 Premium Touchscreen Marine Gauge — a unique 4-inch chartplotter that blends modern marine technology with luxury styling and retro-inspired elegance. With its premium round design, intuitive touchscreen interface and advanced functionality, the E360 offers far more than a standard gauge; it delivers a smarter, more refined boating experience.

Designed to bring navigation, monitoring and vessel data together in one compact display, the LXNAV E360 combines the familiar look of a traditional marine instrument with the capabilities of a modern multifunction display. Its bright 4-inch sunlight-readable screen provides clear access to essential information, helping you stay informed and in control while on the water.

Built for use with NMEA2000-compatible systems, the E360 can display real-time data from connected onboard equipment, including engine information, depth, speed, battery status, fluid levels, alarms and other key vessel parameters. Its intuitive touchscreen makes operation simple, giving you fast access to the information you need while helping reduce dashboard clutter.

Ideal for modern yachts, powerboats, electric vessels and refit projects, the E360 is built for installations where space, design and performance all matter. Features such as automatic brightness adjustment and optional jog wheel control help ensure easy operation in changing light and sea conditions.

Combining elegant design, smart monitoring and advanced navigation capability in one compact gauge, the LXNAV E360 is a stylish and practical upgrade for boat owners who want a cleaner cockpit, clearer information and greater confidence on the water.

Features:

• Intuitive Interface: A user interface designed to be intuitive and easy to navigate, in accordance with smartphones logic. Using the menu button provides quick access to shortcuts, settings and access to all essential features.
• Monitor Your Engine Data: RPMs, temperature, pressure, rudder angle, warnings, and other engine parameters are continuously monitored and displayed on the digital gauge. Either single or dual engine fitted to the NMEA2000 backbone are supported.
• Real Time Battery Status:  Stay in control with real-time battery information, including state of charge, remaining battery time, power consumption, charging current, and more—all accessible through the LXNAV SmartSHUNT or any other compatible NMEA2000 shunt for accurate and reliable monitoring.
• Fluid Level Monitoring: Keep track of your fuel, oil, fresh water, black water, and two customizable fluid levels—all on a single gauge. Connected to your NMEA2000 network, the E360 displays up to six fluid levels for total control of your boat’s resources.
• Intelligent Warning:  Safety first! The iAssist functionality automatically switches between screens and displays key information based on priority, allowing you to stay focused on your boating experience. Early warnings and notifications ensure you’re alerted well in advance before a situation becomes critical.
• The One & Only Round Chartplotter: Enjoy smooth and reliable navigation with the integrated OpenSeaMap nautical chart – included free of charge. Explore detailed maps and advanced features such as no-wake zones, anchor watch, course plotting, and more. A simple double-tap instantly enlarges the map for a clearer, more detailed view.
• For even greater chart detail, the device is also compatible with Navionics charts. Simply insert an SD card into the slot on the back of the device to access enhanced marine mapping.
• Advanced Anchor Watch: The smart Anchor Watch feature lets you set a custom anchor radius, continuously monitoring your boat’s movement from the moment it is anchored. If the boat drifts beyond the defined zone, audio and visual alarms are triggered to alert you instantly.
• Flexible Custom Layout:  Take full control of your display with FloatBox, a feature that lets you customise any screen with floating boxes, adjusting their size and font options to monitor exactly what you need. Create personalised screen sets to organize your favorite views and essential information, ensuring everything you need right at your fingertips.
• Jog Wheel:  For precise control in rough waters, the optional Jog Wheel can be installed anywhere on your boat and connected to the NMEA2000 network. Its press-and-rotate function allows easy screen navigation and instrument setup. Installed next to a comfortable seat, a single Jog Wheel can control one or multiple instruments, making it a practical add-on for your boat.
• High Performance Touchscreen: With advanced processing power, the interactive and incredibly responsive capacitive touchscreen registers even the lightest touches with accuracy, making navigation effortless.

Specifications:

• Voltage: 8-32V DC
• Display:4″ capacitive touchscreen 720×720 pixels
• Operating Temperature: -20° TO 60°C
• Consumption: 360mA @ 12V
• IP Rating: IPX6
• Connection: 1 × NMEA2000 (CAN micro-C 5pin) WiFi, USB C, Micro SD card
• Multi Language: Yes
• Alarms:  Visual and Audible
• Auto On: Yes

In the box:

• E360 instrument
• Quick start guide
• Installation instructions
• Mounting hardware

Product Code:E360
