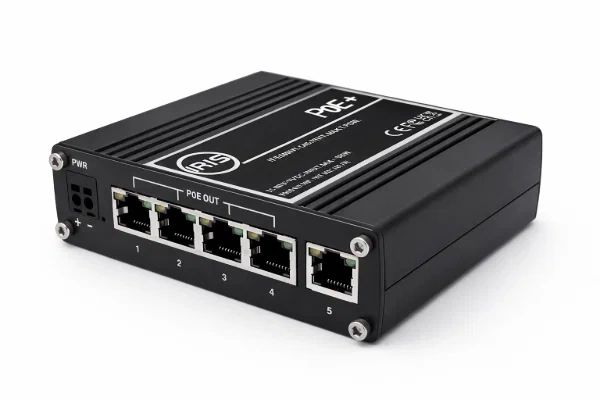

IRIS PoE04v2 4-Port PoE Switch with Uplink 9–30V DC 60W

The IRIS PoE04v2 4-Port PoE Switch with Uplink 9–30V DC 60W provides a simple, reliable way to power and connect up to four compatible PoE devices, including IP cameras, through a single network setup. By carrying both power and data over Ethernet, it helps keep installations tidy while reducing the need for separate power cabling.

Well suited to marine, automotive and off-grid applications, the PoE04v2 supports a wide 9–30V DC input range, making it a practical choice for environments where supply voltage may vary. It converts the input to a 48V DC PoE output and offers a total power capacity of 60W, with up to 30W available per port.

Four PoE ports allow multiple cameras or other supported network devices to be connected from one compact unit, while the passive uplink port makes it easy to integrate the switch with routers, modems and additional network equipment.

Compact and versatile, the IRIS PoE04v2 is a practical networking solution for CCTV, marine monitoring, vehicle installations and other systems requiring dependable PoE power and connectivity.

Features:

• Four PoE output ports plus one dedicated uplink/network input port
• Supplies power and data to up to four IEEE 802.3af / 802.3at compliant devices
• Wide DC input voltage range from 9 V to 30 V, suitable for 12 V and 24 V systems
• Total power budget of up to 60 W with flexible power allocation across ports
• Supports up to 30 W per port depending on load distribution
• Plug-and-play operation with no configuration required
• Compact aluminium enclosure with mounting points for secure installation
• Designed for marine, vehicle, and off-grid environments
• Supports standard Ethernet cable runs up to 100 m

Certification:

• The IRIS-PoE1marine certified: • IEEE802.3af / 3at (PoE+)
• Designed for battery powered applications such as boats & vehicles.

Product Code:37548
